Cooling Ring

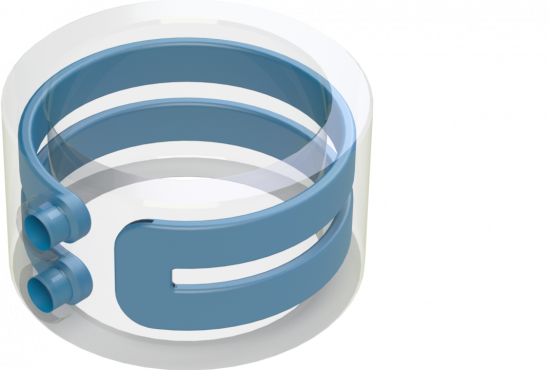

Cooling Ring is produced using tool steel forged or rolled blocks. It is designed for a separate cooling circuit. It is a standard dimensions component that fits all shot sleeves.

HTS Difference

Innovative Technology – Based on MFT™ and DED technologies we produce components with conformal cooling / flow design and mechanical properties of a forged tool steel block.

Superior Performance – iTherm® components have a big impact on cooling and material flow, resulting in shorter cycle times, higher cast/moulded part quality and subsequentially also productivity.

Solution Oriented – Years of experience and R&D of HTS Group companies, combined with leading OEM customer partnerships gives us knowledge and capacity to help you improve your productivity.

Advantages of HTS Cooling Ring

No coolant leakage

Parameters

Dimensional range

Diameter 110- 320 (larger diameters available on request)

Height 80 – 250

Material

HTS Cooling rings are made using forged tool steel blocks produced in EU.

Most often used grade is 1.2343/H11.

Based on specific customer need, other steel grades can be used.

Delivery condition

heat treated

hardness between 40 and 46 HRC

machined to final dimension

nitrided

Configure your HTS Cooling Ring online

We have developed an online configurator that helps you configure the parameters of HTS Cooling ring according to your specific requirements.

Online Configurator

Downloads

You can find more detailed information in the downloadable datasheets.

Download Data Sheet
