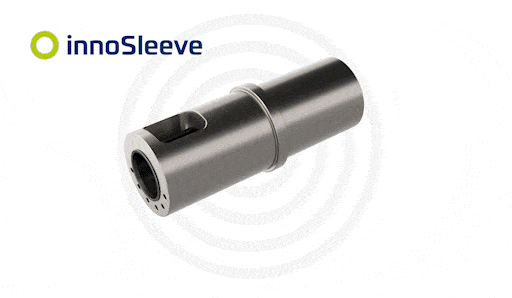

A cutting-edge shot sleeve solution designed to reduce sleeve expenditures by up to 40%.
When the insert wears out, it is easily replaced with a new one while the sleeve remains in operation.
The difference in usage between the innoSleeve solution and the conventional shot sleeve is that with innoSleeve the cost of envelope occurs only once, when the solution is implemented.
After that, only the insert needs replacement, while the envelope remains unchanged. This results in fewer replacements, faster maintenance, and significantly lower costs.
This surpasses traditional shot sleeves made from 1.2243/H11 or 1.2344/H13 alloys by 25%. This significant difference in hardness results in a substantially longer lifespan—up to 55% longer than conventional sleeves.
Usage of innoSleeve reduces not only the frequency of replacements, but also the time it takes to complete the replacement.
The replacement of InnoSleeve insert is in most cases done on the machine, so it is up to 20% quicker than the replacement of the whole shot sleeve, significantly minimizing production stoppages.
The replacement is done without the need to dismantle it from the machine, using a specialized tool provided by us.
Inner diameter 50 – 210 mm
Length 200 – 1.600 mm
innoSleeves are made using forged or rolled tool steel blocks produced in EU.
Integral inserts can be made of three different material choices, 1.2343 / 1.2344 or by using one of the two specially developed tool steel grades.
Inner diameter 70 – 210 mm
Length 200 – 1.600 mm
innoSleeves are made using forged or rolled tool steel blocks produced in EU.
Integral inserts can be made of three different material choices, 1.2343 / 1.2344 or by using one of the two specially developed tool steel grades.
